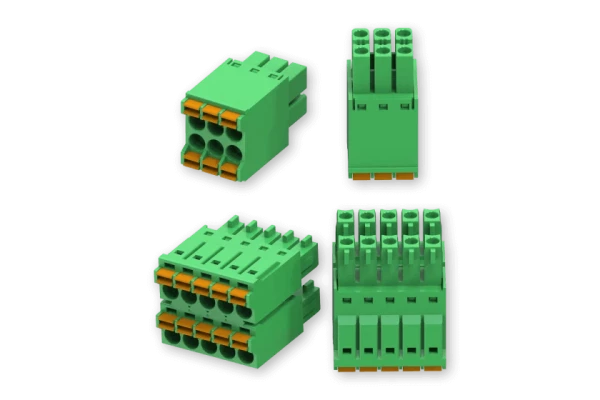

Teltonika connectors set *new*

Connectors set.

Connectors technical details:

• 2x5 pin connector:
  • General:
    • Voltage rating:
      • 300V
    • Current rating:
      • 8A
    • Withstand voltage:
      • 1600 V/1min
    • Wire range AWG:
      • 16...24AWG
    • Operating temperature:
      • –40...+105°C
    • Insulation material
      • PA66
    • Internal contacts material:
      • Copper alloy
    • Internal contacts finishing:
      • Tin plated
  • Additional:
    • Strip Length:
      • 9...10mm
    • Pitch:
      • 3.5mm
    • Shrapnel material:
      • Stainless steel
    • Conductor cross section:
      • 0.2...1.5mm²
    • Poles:
      • 2 x5
    • Flammability rating:
      • UL 94V-0
    • RoHS
      • Yes
    • REACH
      • Yes

• 2x3 pin connector:
  • General:
    • Voltage rating:
      • 300V
    • Current rating:
      • 8A
    • Withstand voltage:
      • 1600 V/1min
    • Wire range AWG:
      • 16...24AWG
    • Operating temperature:
      • –40°C...+105°C
    • Insulation material
      • PA66
    • Internal contacts material:
      • Copper alloy
    • Internal contacts finishing:
      • Sn plated
  • Additional:
    • Strip Length:
      • 9...10mm
    • Pitch:
      • 3.5mm
    • Shrapnel material:
      • Stainless steel
    • Conductor cross section:
      • 0.2...1.5mm²
    • Poles:
      • 2x3
    • Flammability rating:
      • UL 94V-0
    • RoHS
      • Yes
    • REACH
      • Yes

• Compatible products:
  • RUT906
  • RUT955
  • RUT956

Download Teltonika connectors set technical datasheet
