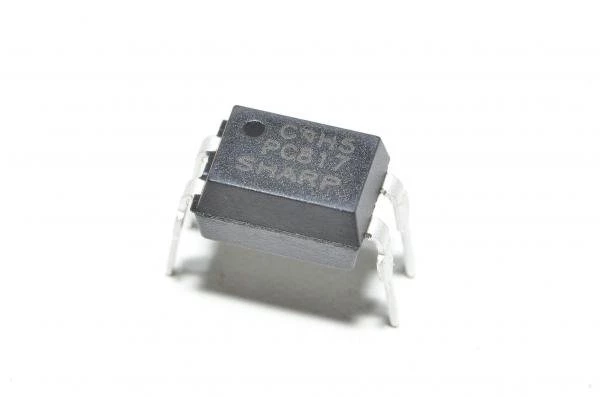

Sharp PC817 DIP 4pin general purpose optocoupler *new*
- Manufacturer:
Sharp - Model:
Sharp PC817 *new* - Dimension:
9 x 4.70 x 7.45 mm - Weight:
1 g - Availability: 25pcs
- Condition: New
-
Price Including VAT: 0.81€
- Ex Tax: 0.65€
An opto-isolator (also called an optocoupler, photocoupler, or optical isolator) is an electronic component that transfers electrical signals between two isolated circuits by using light. Opto-isolators prevent high voltages from affecting the system receiving the signal. A common type of opto-isolator consists of an LED and a phototransistor in the same opaque package. Other types of source-sensor combinations include LED-photodiode, LED-LASCR, and lamp-photoresistor pairs. Usually opto-isolators transfer digital (on-off) signals, but some techniques allow them to be used with analog signals.
Optoisolator key technical specs:
- Absolute max ratings:
- Forward current IF:
- 50mA
- Peak forward current IFM:
- 1A (Pulse width≤100μs, Duty ratio : 0.001)
- Reverse voltage VR:
- 6V
- Power dissipation P:
- 60mW
- Collector-emitter voltage VCEO:
- 80V* (Our current stock is made on May 1996)
- Emitter-collector voltage VECO:
- 6V
- Collector current IC:
- 50mA
- Collector power dissipation PC:
- 150mA
- Isolation voltage Viso(RMS):
- 5kV
- Operating temperature range:
- -30...125°C
- Forward current IF:
- Electro-optical characteristics:
- Forward voltage VF @ IF = 20mA:
- Typical 1,2V
- Max 1,4V
- Peak forward voltage VFM @ IFM = 0,5A:
- Max 3V
- Collector current IC:
- Min 2,5mA
- Max 30mA
- Collector-emitter saturation voltage VCE(sat) @ IF = 20mA, IC = 1mA
- Typical 0,1V
- Max 0,2V
- Cut-off frequency fc @ VCE = 5V IC = 2mA RL = 100Ω -3dB:
- Typical 80kHz
*Up to manufacturing date code "P7" (July 2002) VCEO : 35V.
From the production Date code "P7" (July 2002) to "J5" (May 1997), however the products were screened by BVCEO≥70V.
Download Sharp PC817x series 4pin DIP general purpose photocoupler technical datasheet
Tags: optical isolator, photocoupler, PC817X-series, opto-isolator, Sharp, optocoupler
