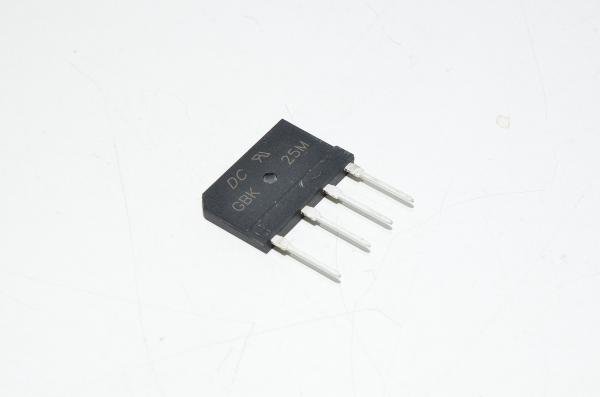

DC Components GBK25M 1~ full bridge rectifier bridge, 1000V 25A *new*

A diode bridge is an arrangement of four (or more) diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input. When used in its most common application, for conversion of an alternating-current (AC) input into a direct-current (DC) output, it is known as a bridge rectifier. A bridge rectifier provides full-wave rectification from a two-wire AC input. The essential feature of a diode bridge is that the polarity of the output is the same regardless of the polarity at the input. The diode bridge circuit was invented by Polish electrotechnician Karol Pollak. The German physicist Leo Graetz independently invented and published a similar circuit. Today the circuit is sometimes referred to as a Graetz circuit or Graetz bridge.

Rectifier bridge technical details:

• Leg spacing:
  • 7,3...7,7mm and 9,8...10,2mm
• Leg cross-section dimensions:
  • 0,6...0,8x0,9...1,1mm
• Operation method:
  • For single phase rectification
• Max recurrent peak reverse voltage (U_RRM):
  • 1000V
• Max RMS bridge input voltage (U_RMS):
  • 700V
• Max average forward output current T_A=75°C (I_O):
  • 25A with heatsink
  • 4,2A without heatsink
• Peak forward surge current 8.3ms single half sine wave (I_FSM):
  • 350A
• Max forward voltage drop (U_F):
  • 1,1V
• Max DC reverse current at rated DC blocking voltage per element (I_R):
  • T_A=25°C
    • 10µA
  • T_A=100°C
    • 500µA
• Typical junction capacitance (C_J):
  • 85pF
• Typical thermal resistance (RθJA):
  • 0,6°C/W
• Operating temperature range (T_J):
  • -55...150°C

Download DC Components general purpose bridge rectifiers selection overview

Download DC Components GBK25A-GBK25M full bridge rectifier technical datasheets
