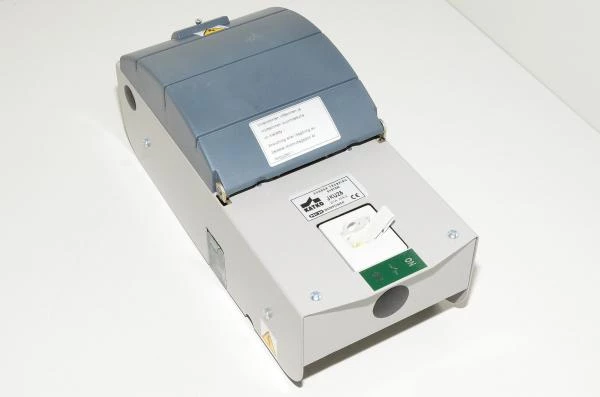

Katko Mempower JKU80 Busbar trunking system for 80A and 400V/415V devices with 3x NH00 blade fuse holders

This module provides convenient and fast way of tapping into a power supply on factory floor. If you have compatible busbar system installed along your factory floor this allows it to be nearly plug and play style operation when you want to tap into the powered busbar. Just connect your appliance into the module, plug it into the busbar and flip the switch. Now you got the device powered, fused and it also has main power switch. Simple, clever and fast when rearranging your machinery on factory floor whenever for production reasons or just to improve Fengshui.

Technical details:

• Switch:
  • Katko EVA 3125
  • 3 phase
  • Can be locked with padlock
  • Max current
    • AC-21 (400V, 415V, 690V):
      • 160A
    • AC-22 (400V, 415V, 690V):
      • 125A
    • AC23 (400V, 415V,690V):
      • 80A
• Fuses:
  • 3x NH00 size blade fuse holders
• Cable output:
  • 1x 42mm hole with cable holder
  • N and PE screw terminals inside
    • Phases are connected into switch
