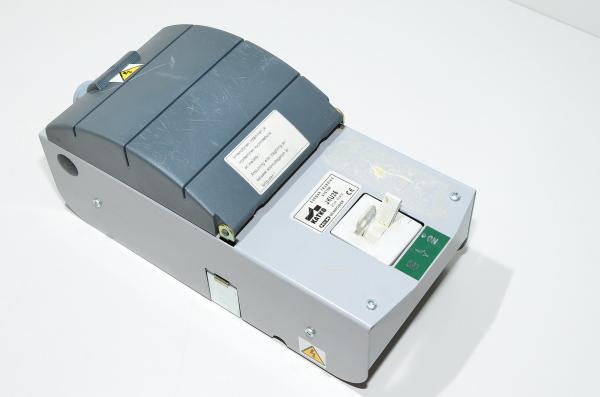

Katko Mempower JKU25 Busbar trunking system for 25A and 400V/415V devices with 3x ceramic fuses with 10A fuse bases

This module provides convenient and fast way of tapping into a power supply on factory floor. If you have compatible busbar system installed along your factory floor this allows it to be nearly plug and play style operation when you want to tap into the powered busbar. Just connect your appliance into the module, plug it into the busbar and flip the switch. Now you got the device powered, fused and it also has main power switch. Simple, clever and fast when rearranging your machinery on factory floor whenever for production reasons or just to improve Fengshui.

Technical details:

• Switch:
  • Katko KUE 340
  • 3 phase
  • Can be locked with padlock
  • Max current
    • AC-21 (400V, 415V, 690V):
      • 63A
    • AC-22 (400V, 415V, 690V):
      • 40A
    • AC23 (400V, 415V):
      • 25A
    • AC-23 (690V):
      • 20A
• Fuses:
  • 3x ceramic Diazed II (DII) fuse holders
    • 10A fuse bottoms installed
• Cable output:
  • 1x PG21 cable gland
  • N and PE screw terminals inside
    • Phases are connected into switch
