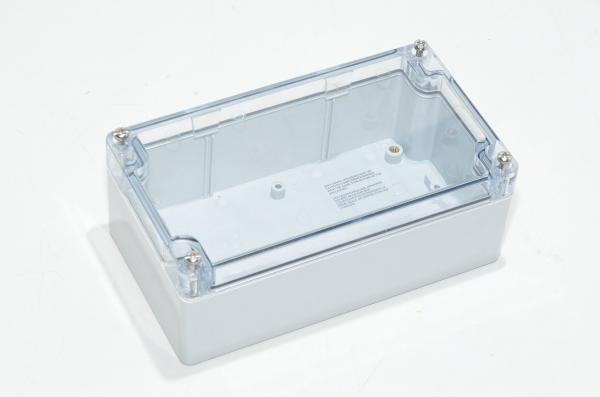

Hammond 1554J2GYCL 90x160x61mm electronic equipment enclosure, polycarbonate, gray, transparent lid, IP66, IK07 *new*

Hammond 1554 series box is very versatile when making some do it yourself stuff. Good size, multiple attachment points, translucent lid, durable IP66 rated housing.

Enclosure technical details:

• Enclosure size:
  • 90x160x61mm
• Housing material:
  • Gray PC (Polycarbonate)
• Lid material:
  • Clear PC (Polycarbonate)
• IP rating (ingress protection classification):
  • IP66
• IK rating (mechanical impact protection classification):
  • IK07
• Operating temperature range:
  • -40...+80°C (not state,but perhaps it's something similar like the other PC boxes)
• Mounting points:
  • 4x 4,1mm holes with 147x57mm spacing
  • Inside has 4x M3 inserts which can be used for PCB mounting
• Other stuff worth mentioning:
  • There is no gate marks in the center of the lid. Good option when using displays!
  • Lid mounting has M4 inserts (open and close repeatedly)

Download Hammond Manufacturing 1554 series enclosures technical datasheet

Download Hammond Manufacturing 1554J enclosure drawing
