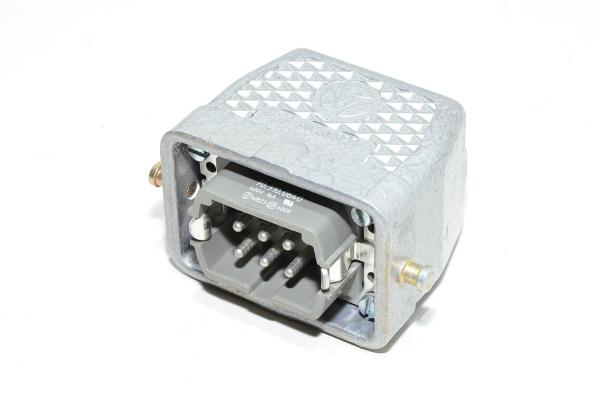

Wieland 70.310.0640 16A male power connector with housing 70.352.0628

This industrial connector is designed to provide a reliable and secure electrical connection in demanding environments. It is particularly suited for heavy-duty industrial and automation applications requiring durability and efficient performance. The 6-pin connector enables the simultaneous transmission of multiple electrical signals or currents.

Connector's technical details:

• Part number:
  • 70.310.0640
• Number of contacts:
  • 6
• Conductor cross-section:
  • 0,5...2,5mm²
• Conductor cross-section;
  • AWG22...AWG14
• Temperature range:
  • -40...+120°C
• IP protection:
  • IP65
• Termination method:
  •  Screw termination
• Gender:
  • Male
• Rated current:
  • 16A
• Rated voltage:
  • 400VAC
• Rated impulse voltage:
  • 6kV
• Contact resistance:
  • <1,5mΩ
• Pollution degree:
  • 3
• Rated current acc. to UL/CSA:
  • 600VAC
• Connector material:
  • Insert
    • Polycarbonate
  • Contacts:
    • Copper alloy
• Housing material:
  • Die-cast aluminium
• Housing part number:
  • 70.352.0628
• Housing locking mechanism:
  • Longitudinal bracket
• Housing IP protection:
  • IP54
