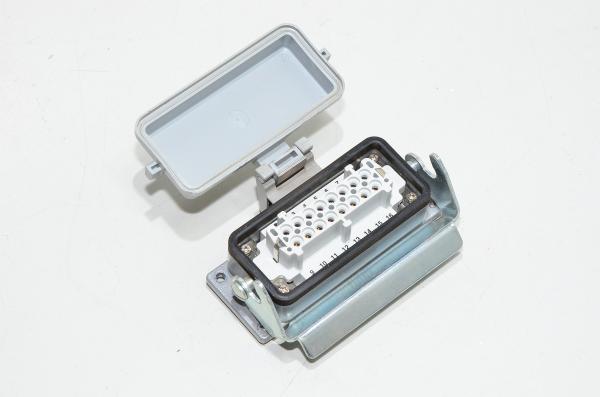

Walther B16 710116 16A female power connector with housing B16 1771613

This industrial connector is designed to provide a reliable and secure electrical connection in demanding environments. It is particularly suited for heavy-duty industrial and automation applications requiring durability and efficient performance. The 16-pin connector enables the simultaneous transmission of multiple electrical signals or currents.

Connector's technical details:

• Part number:
  • 710116
• Number of contacts:
  • 16
• Conductor cross-section:
  • 0,5...2,5mm²
• Conductor cross-section;
  • AWG20...AWG14
• Temperature range:
  • -40...+125°C
• IP protection:
  • IP65
• Termination method:
  •  Screw termination
• Gender:
  • Female
• Rated current:
  • 16A
• Rated voltage:
  • 400VAC
• Rated impulse voltage:
  • 6kV
• Contact resistance:
  • <1mΩ
• Pollution degree:
  • 3
• Rated current acc. to UL/CSA:
  • 600VAC
• Connector material:
  • Insert
    • Polycarbonate
  • Contacts:
    • Copper alloy
• Housing material:
  • Die-cast aluminium
• Housing part number:
  • 1771613
• Housing locking mechanism:
  • Locking clip on base bottom
• Housing IP protection:
  • IP65

Download Walther B-series power connectors technical datasheet
