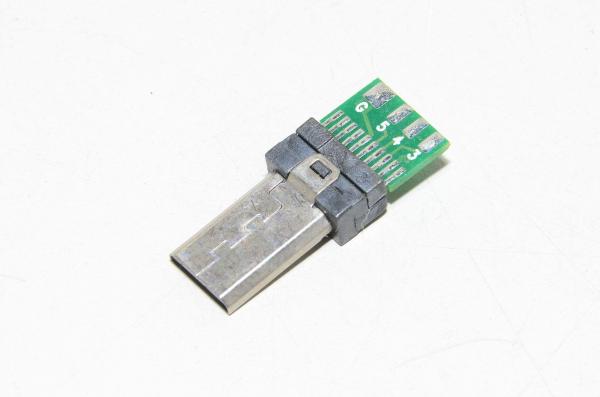

Sony Multiport connector with PCB model 1 *new*

Connector for making your own thingies into Sony DSLR cameras. Make your own remote trigger, connect your own charger or control it through serial port...And lot

Multiport connector technical details:

• Pins present on PCB with solder pads:
  • G (pin 2)
    • GND (Ground) connected to pin 6 (the jump can be easily cut from the back side)
  • 3 (pin 3)
    • Composite video output
  • 4 (pin 4)
    • Shutter (operated by grounding) / Audio L
  • 5 (pin 5)
    • Focus (operated by grounding) / Audio R
  • 6 (pin 6)
    • Mode select, connected to pin 2 (the jump can be easily cut from the back side) (can be connected with 100k resistor into pin 10 or ground for selecting operation mode)
  • Other pins are also present in the connector, but they do not have a solder pad for additional wire
  • Video and audio outputs are not in use when camera is used in wired remote mode
