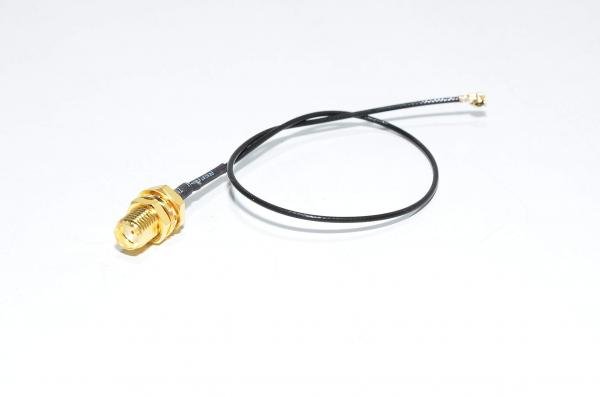

SMA female - U.FL female adapter cable 200mm *new*

Antenna cable adapter, which can be found for example in embedded electronics or within other wireless electronics operating with radio frequency. This cord is particularly used when installing a SMA bulkhead connector on the enclosure wall from the PCB, for the external antenna.

Adapter technical details:

• Cable nominal length:
  • 200mm
• Cable type:
  • Thin black coaxial cable
• Cable outer diameter:
  • 1,1mm
• Max signal frequency:
  • 6GHz
• Connector A:
  • SMA female
    • SMA acronym comes from longer version "SubMiniature version A"
    • Additional features:
      • Disassembled type, ie connector’s pin part can be removed off via threads from it’s enclosure part
    • Connector outer thread:
      • 1/4" 36 tooths per inch, ie outer diameter is 6.2mm (delivery includes suitable spring washer, tooth washer, and a nut for this thing)
    • Max recommended panel installation thickness (connector has one flattened side, which prevents rotation in according hole):
      • ~3mm if you install the connector with supplied nut
      • ~4mm if you thread the hole and drive the connector into that
    • Height of just the threaded part:
      • 11mm
• Connector B:
  • U.FL female
    • Also know with the following names (depends on the manufacturer and the person you are talking about it):
      • Hirose U.FL (connector model is initially manufactured and patented by a company named Hirose Electric Group)
      • IPX
      • IPAX
      • IPEX
      • MHF
      • UMCC
      • AMC
      • Miniature RF connector
      • Miniature PCB RF connector
