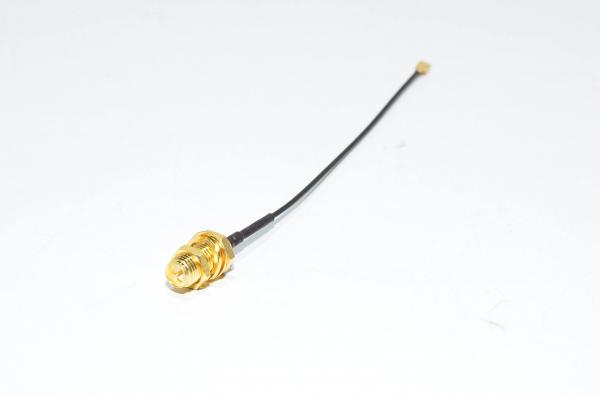

Reverse polarity RP-SMA female - U.FL female adapter cable 100mm

Antenna cable adapter, which can be found for example in embedded electronics or within other wireless electronics operating with radio frequency. This cord is particularly used when installing a SMA bulkhead connector on the enclosure wall from the PCB, for the external antenna.

Adapter technical details:

• Cable nominal length:
  • 100mm
• Cable type:
  • Thin black coaxial cable
• Cable outer diameter:
  • 1,1mm
• Max signal frequency:
  • 6GHz
• Connector A:
  • RPSMA female (ie reverse polarity SMA, ie female connector with male junk in it) (also known by name as RSMA)
    • SMA acronym comes from longer version "SubMiniature version A"
    • Additional features:
      • Disassembled type, ie connector’s pin part can be removed off via threads from it’s enclosure part
    • Connector outer thread:
      • 1/4" 36 tooths per inch, ie outer diameter is 6.2mm (delivery includes suitable spring washer, tooth washer, and a nut for this thing)
    • Max recommended panel installation thickness (connector has one flattened side, which prevents rotation in according hole):
      • ~3mm if you install the connector with supplied nut
      • ~4mm if you thread the hole and drive the connector into that
    • Height of just the threaded part:
      • 11mm
• Connector B:
  • U.FL female
    • Also know with the following names (depends on the manufacturer and the person you are talking about it):
      • Hirose U.FL (connectr model is initially manufactured and patented by a company named Hirose Electric Group)
      • IPX
      • IPAX
      • IPEX
      • MHF
      • UMCC
      • AMC
      • Miniature RF connector
      • Miniature PCB RF connector
