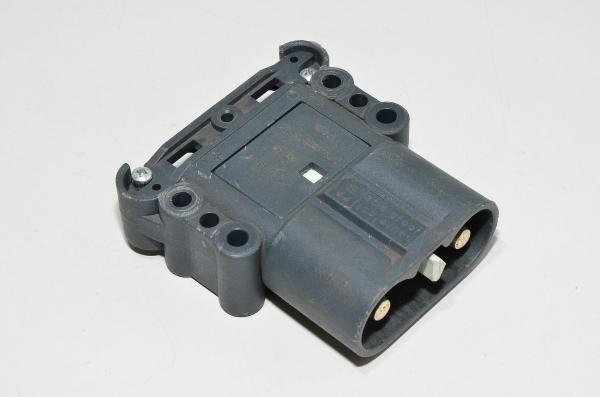

Rema DIN 160 male battery connector for forklifts 160A/150VDC

Big and sturdy automotive battery connector. These can be found mainly in forklifts, but occasionally you might see them also in some mobile elevating work platforms or cleaning machines. Connector is intended for connecting the device to the battery pack or respectively charger to the battery pack. Needless to say, that the connection and disconnection is always done without any load (if of course your goal is not to weld the connectors together)

Connector technical information:

• Material:
  • Silver plated ETP copper
  • Glass fiber reinforced polypropylene (PP-GF) (acid resistant)
• Suitable lead size:
  • 50mm² internal diameter 11,1mm (pin product code 108591)
  • 20mm stripping length
• Connection method:
  • By crimping or soldering
• Polarity:
  • Male, used as a connector for charger or machine end
• Insulation color:
  • Gray
• Max current rating:
  • 160A (according to DIN VDE 0623-589 standard)
• Operating temperature range:
  • -20…105°C
• Acid resistance:
  • According to EN 1175-1 standard
• Connector set consists of the following parts:
  • Gray housing PP-GF 100430
  • 2x main contact 50mm² 108591
  • Gray locking part 100432
  • Gray (Old model is light gray) coding pin (wet + wet) 100015
  • 2x cable clamp 100433
  • cable clamp screws 102665

Download Rema DIN 160 series battery connectors technical datasheet
