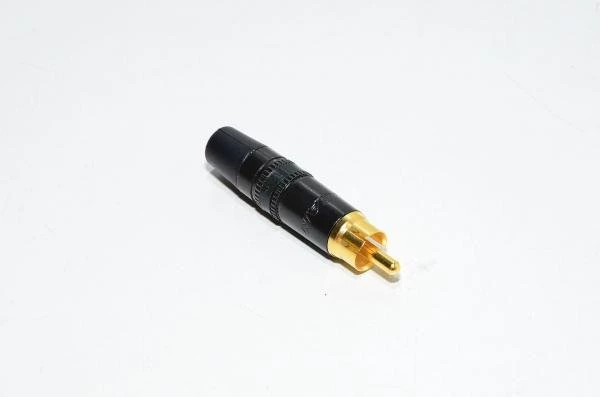

RCA male connector Rean NYS 373-0 black with metal housing for max 6,1mm cable *new*

This is one of the most popular type of an audio connectors in use. RCA connector is extremely popular among consumer electronics. The naming RCA comes historically from the company name that invented it "Radio Corporation of America".

Connector’s technical details:

• Material:
  • Metal housing
  • Gold plated contacts
• Max compatible cable diameter:
  • 6,1mm
• Min compatible cable diameter:
  • 3,5mm
• Connection type:
  • Solder
• Color coding:
  • Black
• Strain relief:
  • 3-sided conical, thread lockable
• Connector outer diameter:
  • 12,3mm
• Connector overall length:
  • 56mm
• Typical connection in audio use:
  • Audio signal:
    • Tip:
      • Signal + (usually red)
    • Sleeve:
      • Ground - (usually cable’s braided copper shield)

Download Rean connectors product catalog
