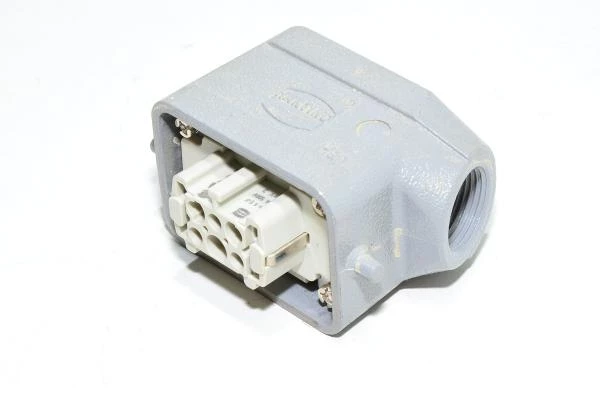

Harting heavy duty power Han 06E-F 16A female connector with housing Han 6B

Han 06E-F power connector is a high-performance, industrial-grade connector designed to handle demanding electrical and power distribution tasks. It is part of the Han E-Series from Harting, a series known for robust, reliable, and versatile connectors suitable for heavy-duty applications. It has superior protection, making it a top choice for industries like automation, robotics, and factory machinery. The connector's modular design and versatility ensure that it can be adapted to meet specific application requirements.

Connector's technical details:

• Model:
  • Han 06E-F
• Number of contacts:
  • 6
• Conductor cross-section:
  • 0,75...2,5mm²
• Conductor cross-section;
  • AWG18...AWG14
• Temperature range:
  • -40...+125°C
• IP protection:
  • IP65
• Termination method:
  •  Screw termination
• Gender:
  • Female
• Rated current:
  • 16A
• Rated voltage:
  • 400VAC
• Rated impulse voltage:
  • 6kV
• Contact resistance:
  • <1mΩ
• Pollution degree:
  • 3
• Rated current acc. to UL/CSA:
  • 600VAC
• Connector material:
  • Insert
    • Polycarbonate
  • Contacts:
    • Copper alloy
• Housing material:
  • Die-cast aluminium
• Housing model:
  • Han 6 B
• Housing locking mechanism:
  • Bulkhead mounted
• Housing IP protection:
  • IP65

Download Harting heavy duty power Han 06E-F female connector technical datasheet

Download Harting Han-kit complete connector sets technical datasheet
