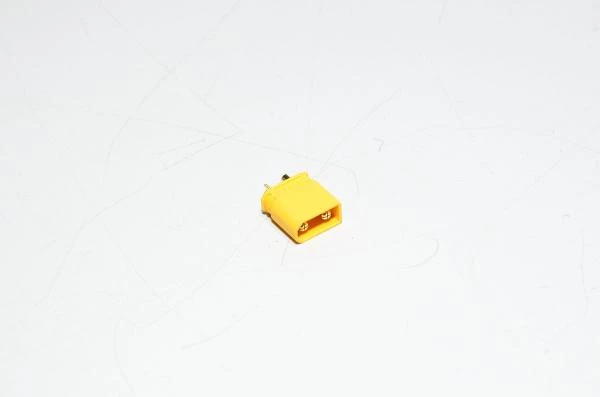

Amass XT30U-M3 yellow 2pin male power connector, 500VDC, 15/30A *new*

XT30U connector is made from high-temp nylon with gold plated connectors so the XT30U continues to provide an excellent high-amp connection for applications up to 65A. The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking housing with different color provide the protection to the soldered points and make this connector little fancy.

Some use examples for power connectors:

• Battery connectors
• Power supply connectors
• Motor connectors
• Connecting high current devices with various controllers

Connector technical details:

• Max operating voltage:
  • 500VDC
• Max rated constant current:
  • 15A
• Max momentary current:
  • 30A
• Max compatible wire size:
  • 0.75mm² (18AWG)
• Connector type:
  • 2pin male coded power connector
• Connection method:
  • Soldering
• Contact material:
  • Gold plated brass
• Housing material:
  • Polyamide (PA, nylon)
• Color:
  • Yellow (model code's number 3 designates yellow color)
• Compatible connectors:
  • Any XT30-series female connector:
• Flammability rating:
  • UL94V-0
• Operating temperature range:
  • -20…120°C

Download Amass XT, AS, AM, EC, MR, MT, SH, GC series power connectors technical datasheet
