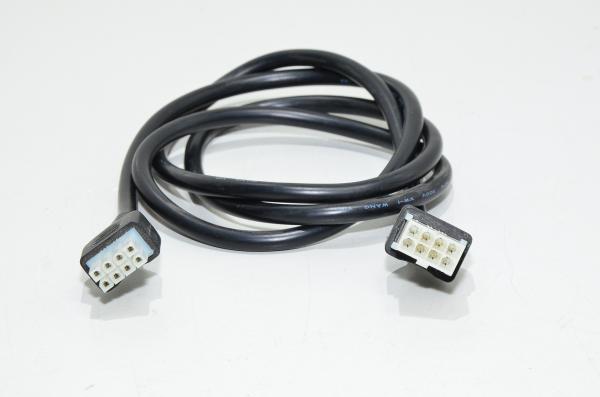

8pin Molex Mini-Fit Jr female connector - male connector extension cable 1,2m

LOGICDATA LogicB-4 / LogicB-5 connection / extension cable links the motor control unit to the lifting motors and table legs of a height-adjustable desk. The cable transmits power and control signals to the motors, enabling stable and synchronized height adjustment. These can be found from electrical tables made by Martela.

•  8pin Molex Mini-Fit Jr connector:
  • 1:
    • Motor -
  • 2:
    • Hall sensors -
  • 3:
    • Hall sensor VCC
  • 4:
    • 1. Hall sensor output
  • 5:
    • 2. Hall sensor output
  • 6:
    • Connected but the controller according to the example does not use it
  • 7:
    • Hall sensors -
  • 8:
    • Motor +
• Cable length:
  • 1,2m
