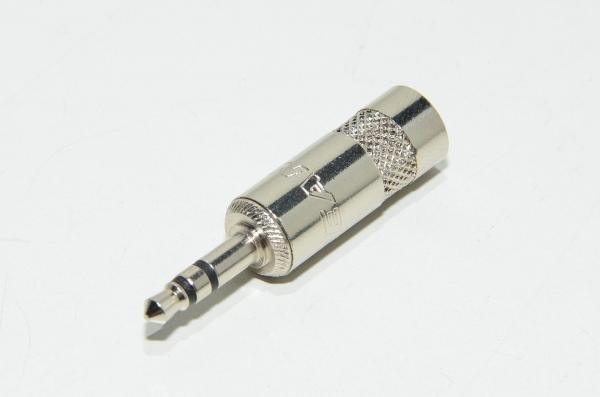

3,5mm stereo plug Rean NYS 231 L silver with metal housing for max 6mm cable *new*

This is one of the most popular type of an audio connectors in use. 3,5mm stereo plug is that same exact plug found on most of the consumer grade headphones.

Connector’s technical details:

• Material:
  • Metal housing
• Max compatible cable diameter:
  • 6mm
• Connection type:
  • Solder
• Strain relief:
  • Crimp type
• Connector outer diameter:
  • 11mm
• Connector overall length:
  • 39mm
• Typical connection in audio use:
  • Stereo signal:
    • Tip:
      • Left signal + (usually red)
    • Ring:
      • Right signal + (usually black or white)
    • Sleeve:
      • Ground - (usually cable’s braided copper shield)
  • Balanced signal:
    • Tip:
      • Signal + (usually red)
    • Ring:
      • Signal - (usually blue or black)
    • Sleeve:
      • Ground - (usually cable’s braided copper shield)

Download Rean connectors product catalog
