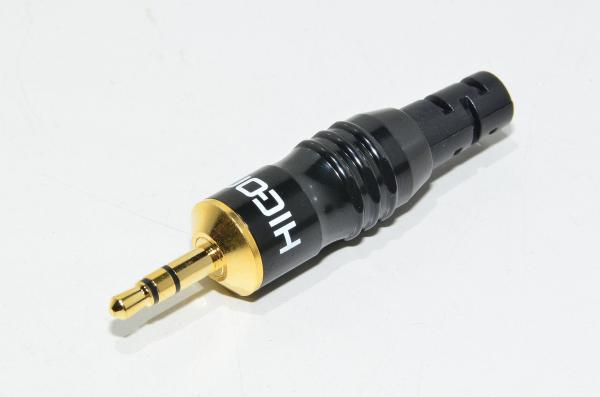

3,5mm stereo plug Hicon HI-J35S02 black with metal housing for max 8,4mm cable *new*

This is one of the most popular type of an audio connectors in use. 3,5mm stereo plug is that same exact plug found on most of the consumer grade headphones.

Connector’s technical details:

• Material:
  • Metal housing
  • Gold plated contacts
• Max compatible cable diameter:
  • 8,4mm
• Connection type:
  • Solder
  • "The solder pad is impossibly small to solder" they said! No worries as a hint, bend the stripped wire around the solder point and solder it horizontally into it’s place. Works like a charm!
• Strain relief:
  • Crimp type + flexible plastic tail
• Connector outer diameter:
  • 13mm
• Connector overall length:
  • 58mm
• Typical connection in audio use:
  • Stereo signal:
    • Tip:
      • Left signal + (usually red)
    • Ring:
      • Right signal + (usually black or white)
    • Sleeve:
      • Ground - (usually cable’s braided copper shield)
  • Balanced signal:
    • Tip:
      • Signal + (usually red)
    • Ring:
      • Signal - (usually blue or black)
    • Sleeve:
      • Ground - (usually cable’s braided copper shield)
