National Instruments 182762B-02 R1005050 Y-shaped flat ribbon cable

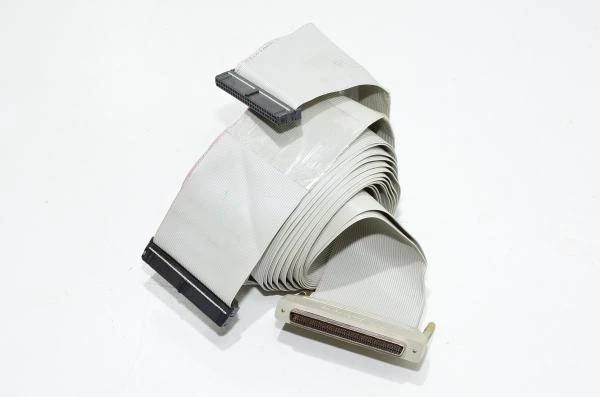

182762B-02 (R1005050) is a 2-meter Y-shaped flat ribbon cable used in industrial and test automation environments. It connects a 100-pin SCSI male connector to two 50-pin IDC female connectors.

Intended use:

• Used for signal distribution between National Instruments DAQ or DIO cards such as:
  • PCI-6527
  • PXI-6527
  • PCI-DIO-96
  • PXI-6508
  • With two 50-pin accessories
• It effectively splits signals from a 100-pin device into two 50-pin interfaces.

Cable technical details:

• Model type:
  • R1005050
  • R100M-50F-50F
• Cable type:
  • Flat ribbon (ribbon-style for easy routing inside enclosures)
• Cable length:
  • 2m
• Connectors:
  • 1x 100-pin SCSI male connector (typically connects to NI digital I/O devices)
  • 2x 50-pin IDC female connectors (for connection to terminal blocks like CB-50LP)

Download National Instruments digital I/O connectivity and signal conditioning cable technical datasheet
