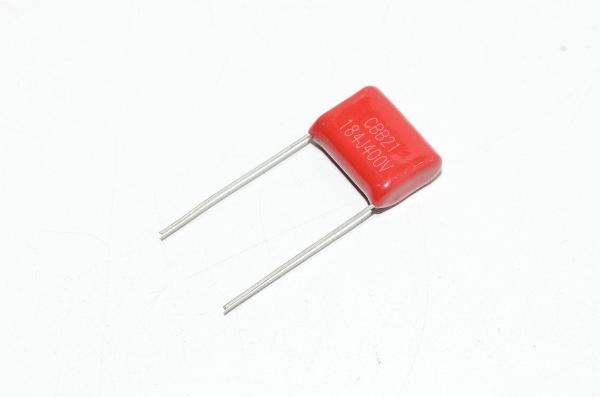

SR Passives MPP-180NR15/400 CBB21 184J400V 180nF/400V 5% 17x5,6x10,5mm 15mm metallized polypropylene film capacitor *new*
- Manufacturer:
SR Passives - Model:
SR Passives MPP-180NR15/400 CBB21 184J400V *new* - Dimension:
17 x 5.60 x 38.80 mm - Weight:
2 g - Availability: 100pcs
- Condition: New
-
Price Including VAT: 0.19€
- Ex Tax: 0.15€
The capacitance is typically indicated by 3x numbers. First two set the first two numbers and third sets the amount of zeros. After that comes a unit (nF, µF) or typically if there is no unit specified then the value is in pF. A letter after that usually represents tolerance and after that comes a number featuring voltage rating. Occasionally voltage rating can also be separated from the capacitance identification.
Typical capacitor fault symptoms:
- Capacitor is swollen/cracked/blown/leaked
- The charge capacitance µF value of the motor capacitor differs from the value stated value by more than the given tolerance when measured with a LCR meter or a multimeter capable measuring capacitors
- Capacitor leaks more than it should (measured in a test circuit sensing leakage current)
- Motor is weak, makes abnormal noise, smells burned, blows a fuse (if used as motor capacitor)
Capacitor technical details:
- Capacitance:
- 180nF
- Capacitance tolerance:
- J = +/-5%
- Construction:
- MPP, metallized polypropylene (PP) film capacitor
- Max operating voltage:
- 400V
- Operating temperature range:
- -40...+80°C
- Mounting:
- Use your imagination
- Nominal packaging size:
- 17x5,6x10,5mm
- Leg spacing:
- 15mm
- Lead length:
- 25mm
- Connector diameter:
- 0,6mm
Download SR Passives MPP series metallized polypropylene film capacitors technical datasheet
