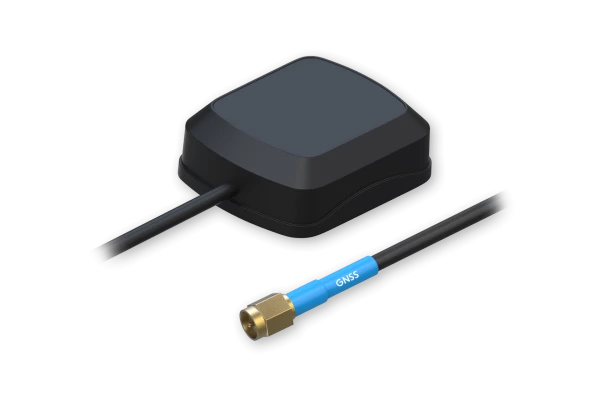

Teltonika GNSS adhesive SMA antenna *new*

GNSS adhesive SMA antenna,

Antenna technical details:

• Parameter:
  • Frequency range:
    • 1575 ~ 1602MHz
  • Polarization:
    • Right-handed circular polarization (RHCP)
  • Gain:
    • 2.0dBi
  • VSWR:
    • 1.5
  • Impedance:
    • 50Ω
  • Axial ratio:
    • 3dB
  • LNA gain:
    • 26 ± 2dB
  • LNA noise figure:
    • 1.5dB
  • Supply voltage:
    • 2.2...5.0VDC
  • Current consumption:
    • 5...5mA
  • LNA VSWR:
    • 2.0
  • Cable:
    • RG174, 3m
  • Connector type:
    • SMA Male
  • Mounting method:
    • Double sided tape
  • Operating temperature:
    • -40...85°C
  • Max relative air humidity:
    • 95%
  • RoHS compliant:
    • Yes
• Compatible products:
  • RUT955
  • RUT956
  • RUTM50
  • RUTX09
  • RUTX11
  • RUTX12
  • RUTX14
  • RUTX50
  • TRB245
  • TRB255

Download Teltonika GNSS adhesive SMA antenna technical datasheet
