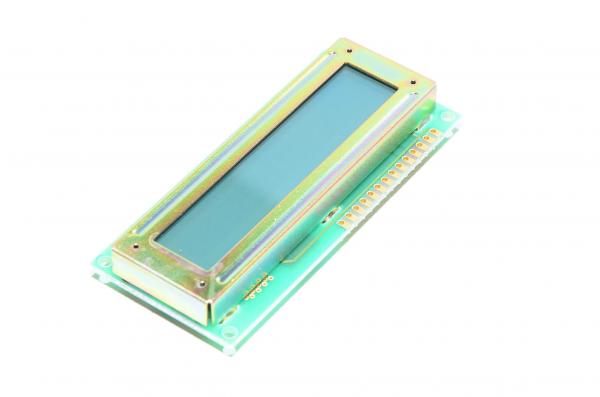

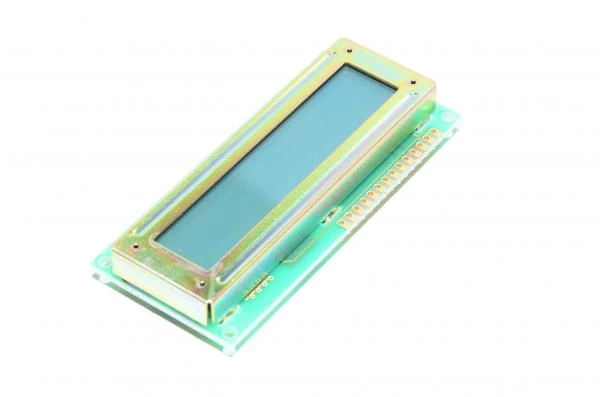

16x1 80x36x12mm 5VDC green/black Solomon LM1000SGL alpha numeric dot matrix LCD display module *new*

LCD display for replacing a broken one or for creating something new. This LCD display can be used easily with Arduino, Raspberry Pi, Intel Edison or any other embedded system you want to work with.

LCD display technical details:

• Operating voltage:
  • 5VDC
• Display color:
  • Green
• Character color:
  • Black
• Display type:
  • STN or TN alphanumeric dot matrix LCD display
• Controlling method:
  • Classic Hitachi HD44780 compliant
• Nominal PCB dimensions:
  • 80x36x12mm (actual units +/-0.2mm)
• Display element outer dimensions (measured from actual unit):
  • 78x20.4x7.7mm
• Electrical connection:
  • 14x gold plated double sided solder pads with 1mm holes, 2.54mm pitch
• Display construction:
  • 16x characters on 1x lines, each character has 8x5 pixels
• Character dimensions:
  • 6.56x3.07mm (or something close to this)
• Operating temperature:
  • -20...70°C

LCD display module pinout:

1. VSS (Ground, ie -)
2. VCC (+5V)
3. V0 (Contrast adjustment)
4. RS (Register Select, RS). RS=0: Command, RS=1: Data
5. RW (Read/Write, R/W). R/W=0: Write, R/W=1: Read (This pin is optional due to the fact that most of the time you will only want to write to it and not read. Therefore, in general use, this pin will be permanently connected directly to ground.)
6. E (Clock) (Enable). Falling edge triggered
7. D0 (Bit 0) (Not used in 4-bit operation)
8. D1 (Bit 1) (Not used in 4-bit operation)
9. D2 (Bit 2) (Not used in 4-bit operation)
10. D3 (Bit 3) (Not used in 4-bit operation)
11. D4 (Bit 4)
12. D5 (Bit 5)
13. D6 (Bit 6)
14. D7 (Bit 7)

Check more detailed info on LCD displays controlled with Hitachi HD44780 LCD controller chip

Download Vishay 16x1 LCD-016N001A LCD display technical dataseheet (similar LCD)
